Parking Brake Shoes: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

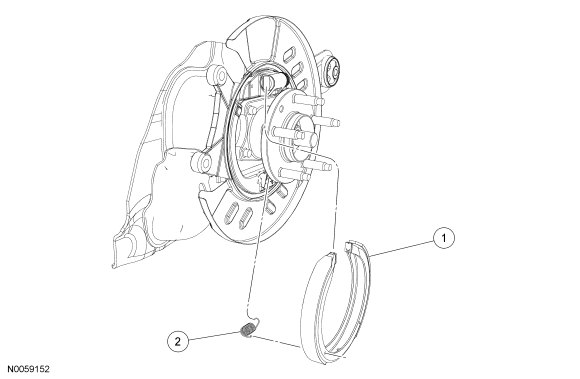

Fig 1: Exploded View Of Parking Brake Shoes

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2648	Parking brake shoe
2	2L642	Parking brake shoe return spring
