Parking Brake Cable - Rear, LH: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All wheel drive (AWD) vehicles shown, front wheel drive (FWD) vehicles similar.

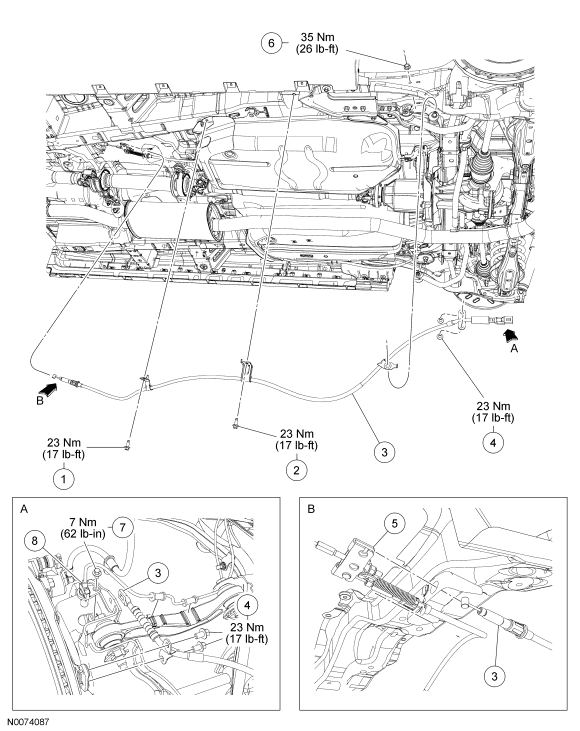

| Item | Part Number | Description |
|---|---|---|
| 1 | W708004 | Parking brake cable front bracket bolt |
| 2 | W708004 | Parking brake cable middle bracket bolt |
| 3 | 2A635 | LH parking brake cable |
| 4 | W500021 | Parking brake cable-to-support plate bolts (2 required) |
| 5 | - | Parking brake cable equalizer (part of 2853) |
| 6 | W520414 | Rear stabilizer bar link nut |
| 7 | W500010 | Wheel speed sensor bolt |
| 8 | 2C190 | Wheel speed sensor |
