Safety Belt Buckle and Pretensioner: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

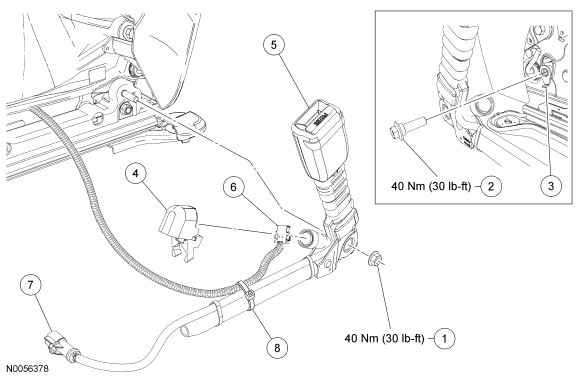

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt buckle pretensioner nut (part of 61202) |
| 2 | - | Safety belt buckle pretensioner bolt (driver side manual seat only) (part of 61202) |
| 3 | - | Safety belt buckle pretensioner anti-rotation locator tab (driver side manual seat only) (part of 61202) |
| 4 | - | Safety belt buckle pretensioner electrical connector cover (part of 61202) (power seat only) |
| 5 | 61202 | Safety belt buckle pretensioner |
| 6 | - | Safety belt buckle pretensioner electrical connector (part of 14A698) |
| 7 | - | Safety belt buckle pretensioner buckle switch electrical connector (part of 61202) |
| 8 | - | Tie strap |
