Side Impact Sensor - B-Pillar
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

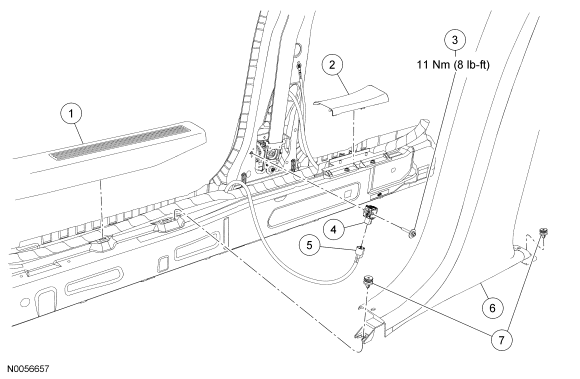

RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 13208 | Front door scuff plate |
| 2 | 13228 | Rear door scuff plate |
| 3 | W712191 | Side impact sensor retaining bolt. |
| 4 | 14B345 | Side impact sensor |
| 5 | - | Side impact sensor electrical connector (part of 14A005) |
| 6 | 24356 | Lower B-pillar trim panel |
| 7 | - | Lower B-pillar trim panel retainers (part of 24356) |
WARNING:
If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
WARNING:
To reduce the risk of accidental deployment, do not use any memory saver devices. Failure to follow this instruction may result in serious personal injury or death.
NOTE:
The air bag warning indicator illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
The supplemental restraint system (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- Position the front seat forward.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the front door scuff plate.
- Pull up to release the 5 retaining clips.
- Remove the rear door scuff plate.
- Pull up to release the 2 retaining clips.
- Detach the 2 retainers and remove the lower B-Pillar trim panel.
- Disconnect the side impact sensor electrical connector.
- Remove the bolt and the side impact sensor.
- To install, tighten to 11 Nm (8 lb-ft).
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
WARNING:
Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
NOTE:
Make sure the B-pillar and side impact sensor mating surfaces are clean and free of foreign material.
NOTE:
Note the position of the side impact sensor locating tabs for installation.
