Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
This vehicle line is equipped with following SRS components:

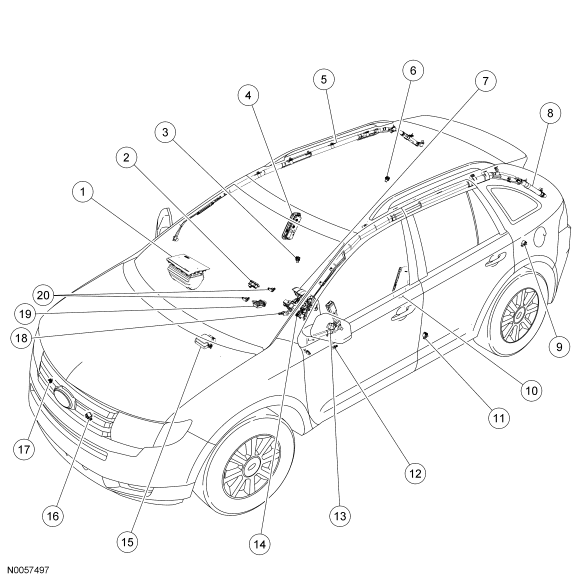

Fig 1: Identifying Air Bag & Safety Belt Pretensioner Supplemental Restraint System (SRS) Components
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | 14B418 | Passenger air bag deactivation (PAD) indicator |
| 3 | 14B345 | First row, passenger, side impact sensor |
| 4 | 611D10 | Passenger side air bag module |
| 5 | 042D94 | Passenger side safety canopy module |
| 6 | 14B345 | Second row, passenger, C-pillar side impact sensor |
| 7 | 043B13 | Driver air bag module |
| 8 | 042D95 | Driver side safety canopy module |
| 9 | 14B345 | Second row, driver, C-pillar side impact sensor |
| 10 | 611D10 | Driver side air bag module |
| 11 | 14B345 | First row, driver, side impact sensor |
| 12 | 14B416 | Driver seat track position sensor |
| 13 | 61203 | Driver safety belt buckle and pretensioner (includes safety belt buckle switch) |
| 14 | 14A664 | Clockspring |
| 15 | 14B321 | Restraints control module (RCM) |
| 16 | 14B006 | Driver/center front impact severity sensor |
| 17 | 14B006 | Passenger front impact severity sensor |
| 18 | 61202 | Passenger safety belt buckle and pretensioner (includes safety belt buckle switch) |
| 19 | 14B422 | Occupant classification sensor (OCS) module |
| 20 | - | Occupant classification weight sensor bolts (2 shown, 4 required) |
