Heated Seat Switch - Rear Seat: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

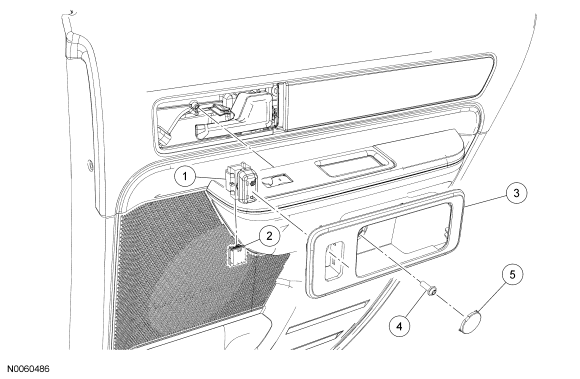

RH switch shown, LH similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Heated seat switch |
| 2 |
- |
Electrical connector (part of 14632) |
| 3 |
- |
Rear door handle bezel |
| 4 |
- |
Rear door handle bezel screw |
| 5 |
- |
Rear door handle bezel screw cover |
