Power Seat Track With Power Recline, Power Lumbar and Climate Control

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cushion Frame From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Wire harness main bundle
2	Occupant classification sensor (OCS) weight sensor bolt wire harness takeout
3	Side air bag electrical connector
4	Power recline electrical connector
5	Backrest thermal electric device (TED) electrical connector
6	Cushion TED electrical connector
7	Power lumbar electrical connector

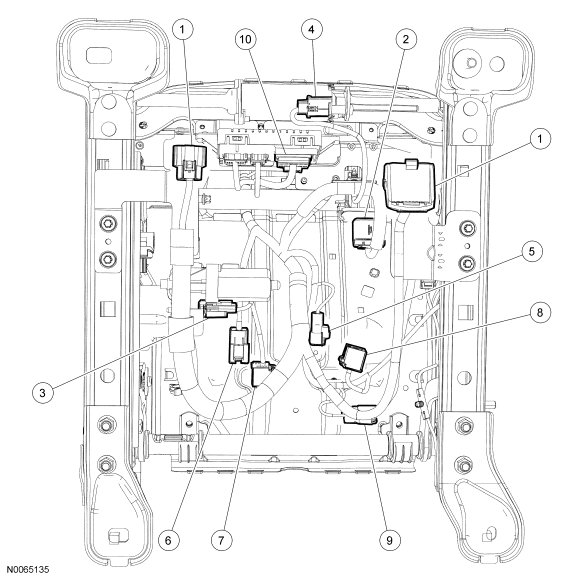

Fig 2: Cushion Frame With Power Seat Track Attached From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Inline electrical connector-to-vehicle harness electrical connector
2	Occupant classification module electrical connector
3	Front height motor electrical connector
4	Horizontal motor electrical connector
5	Side air bag electrical connector
6	Power recline electrical connector
7	Backrest thermal electric device (TED) electrical connector
8	Cushion TED electrical connector
9	Power lumbar electrical connector
10	Climate control seat module (CCSM) and 3 electrical connectors

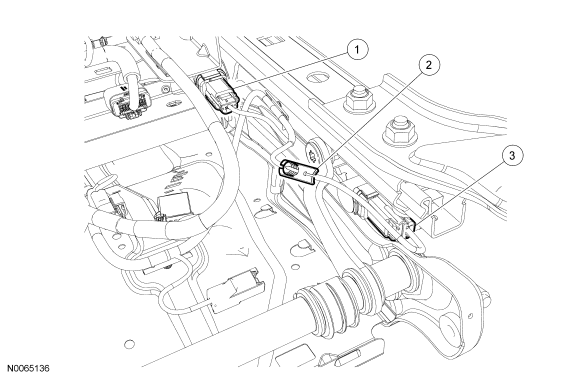

Fig 3: Inboard Side of Cushion Frame and Power Seat Track From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Front inboard occupant classification sensor (OCS) weight sensor bolt electrical connector
2	Attaches to inboard OCS weight sensor bolt protection bracket
3	Rear inboard OCS weight sensor bolt electrical connector

Fig 4: Front of Cushion Frame and Power Seat Track From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Seat control switch and rear height motor takeout must be routed on top of the bracket
2	Wire harness attachment points
3	Horizontal motor electrical connector
4	Safety belt buckle switch electrical connector pin-type retainer attached in place

Fig 5: Front Inboard Side of Cushion Frame and Power Seat Track From Upright

Courtesy of FORD MOTOR CO.

Item	Description
1	Safety belt buckle switch electrical connector
2	Safety belt buckle pretensioner wire harness takeout attachment point

Fig 6: Front Inboard Side of Cushion Frame and Power Seat Track From Upright

Courtesy of FORD MOTOR CO.

Item	Description
1	Safety belt buckle switch electrical connector
2	Pretensioner takeout must be tie-strapped to the tube
3	Safety belt buckle pretensioner electrical connector

Fig 7: Front and Outboard Side of Cushion Frame and Power Seat Track From Upright

Courtesy of FORD MOTOR CO.

Item	Description
1	Seat control switch and rear height motor takeout must be routed on top of the bracket
2	Rear height motor takeout attachment points
3	Outboard occupant classification sensor (OCS) weight sensor bolt takeout must be routed under the bracket
4	Outboard OCS weight sensor bolt takeout attachment points

Fig 8: Outboard of Cushion Frame and Power Seat Track From Upright

Courtesy of FORD MOTOR CO.

Item	Description
1	Rear height motor electrical connector
2	Rear outboard occupant classification sensor (OCS) weight sensor bolt electrical connector
3	Front outboard OCS weight sensor bolt electrical connector
4	Seat control switch electrical connector

Make sure the passenger seat cushion wire harness is correctly routed and attached.
