Manual Seat Track With Heat

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cushion Frame From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Wire harness main bundle
2	Occupant classification sensor (OCS) weight sensor bolt wire harness takeout
3	Side air bag electrical connector
4	Cushion heater mat electrical connector
5	Backrest heater mat electrical connector

Fig 2: Cushion Frame With Manual Seat Track Attached From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Inline electrical connector to vehicle harness electrical connector
2	Occupant classification module electrical connector
3	Wire harness with gray tape
4	Side air bag electrical connector
5	Wire harness with orange tape
6	Heated seat module electrical connector
7	Cushion heater mat electrical connector

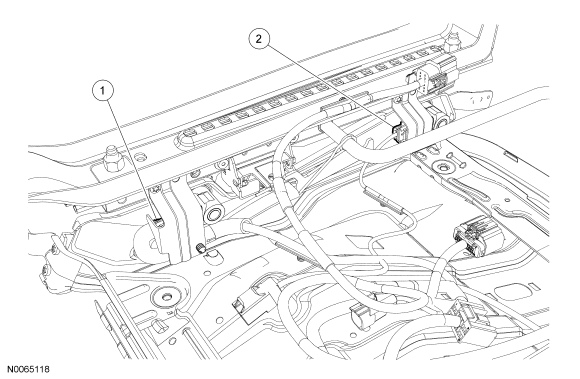

Fig 3: Outboard Side of Cushion Frame and Manual Seat Track From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Rear outboard occupant classification sensor (OCS) weight sensor bolt electrical connector
2	Front outboard OCS weight sensor bolt electrical connector

Fig 4: Inboard Side of Cushion Frame and Manual Seat Track From Underneath

Courtesy of FORD MOTOR CO.

Item	Description
1	Front inboard occupant classification sensor (OCS) weight sensor bolt electrical connector
2	Rear inboard OCS weight sensor bolt electrical connector

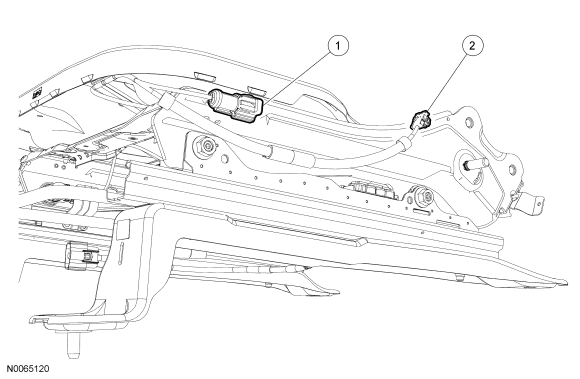

Fig 5: Inboard Side of Cushion Frame and Manual Seat Track From Upright

Courtesy of FORD MOTOR CO.

Item	Description
1	Safety belt buckle switch electrical connector
2	Safety belt buckle pretensioner electrical connector

Make sure the passenger seat cushion wire harness is correctly routed and attached.
