Removal And Installation: Spoiler
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

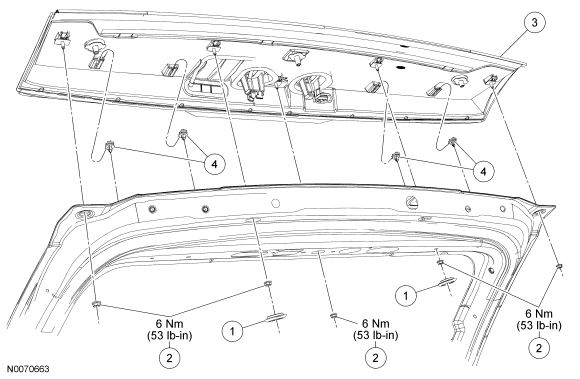

| Item | Part Number | Description |
|---|---|---|
| 1 | W651016-S | Spoiler nut covers (2 required) |
| 2 | W621926-S | Spoiler nuts (5 required) |
| 3 | 010807 | Spoiler |
| 4 | 7841602 | Spoiler retainers (4 required) |
- Remove the liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Disconnect the electrical connector and the rear windshield washer hose from the rear spoiler.
- Remove the 5 rear spoiler nuts.
- Remove the 2 nut covers.
- Remove the 5 nuts.
- To install, tighten to 6 Nm (53 lb-in).
- Place a piece of tape on the liftgate to protect the paint.
- Remove the rear spoiler.
- Place a pry bar between the liftgate and the spoiler.
- To install, reverse the removal procedure.
- Replace any retainers broken during removal.
NOTE:
There are 4 pin-type retainers on the bottom of the spoiler. When removing the spoiler it is difficult to access the retainers to release them from the liftgate. It may be necessary to pry upward on the rear spoiler to release it from the retainers. Do not pry on the window.
