Rocker Panel Moulding

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

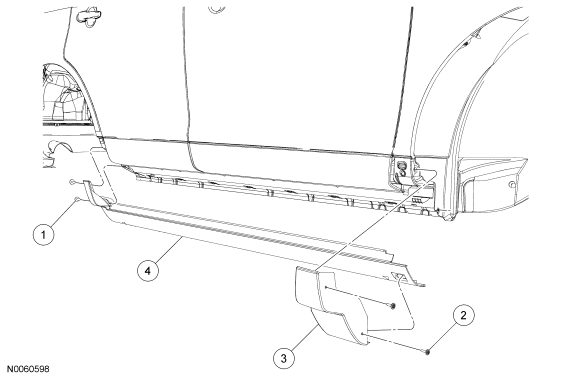

Fig 1: Exploded View Of Rocker Panel Moulding

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706805-S	Rocker panel molding rear screw (2 required)
2	W706805-S	Rocker panel molding cap front screw (2 required)
3	7810154 RH/ 7810155 LH	Rocker panel molding cap
4	78101A04 RH/ 78101A05 LH	Rocker panel molding

Remove the rocker panel molding front cap.
- Remove the 2 screws.
- Remove the front cap.

Fig 2: Identifying Rocker Panel Molding End Cap & Screws

Courtesy of FORD MOTOR CO.

NOTE: RH shown, LH similar.

Remove the 2 screws from the rocker panel molding inside the rear wheelhouse.

Fig 3: Identifying Screws From Rocker Panel Moulding Inside Rear Wheelhouse

Courtesy of FORD MOTOR CO.

Open the front and rear doors.
Release the retainers on the bottom of the rocker panel molding.

Fig 4: Identifying Retainers On Bottom Of Rocker Panel Moulding

Courtesy of FORD MOTOR CO.

Pull outward to release the rocker panel molding from the body, starting from the front of the vehicle moving rearward.
To install, reverse the removal procedure.
