Console - Floor

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

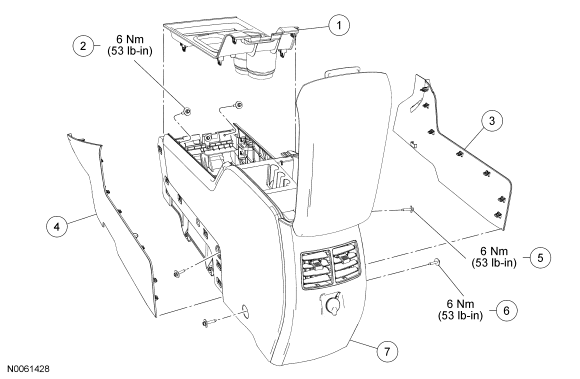

Fig 1: Exploded View Of Edge Floor Console With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	045A76	Floor console finish panel
2	W706862	Floor console-to-instrument panel bolt (2 required)
3	045M10	Floor console RH side panel
4	045M11	Floor console LH side panel
5	W706862	Floor console center bolt (2 required)
6	W706862	Floor console rear bolt (2 required)
7	045A06	Floor console

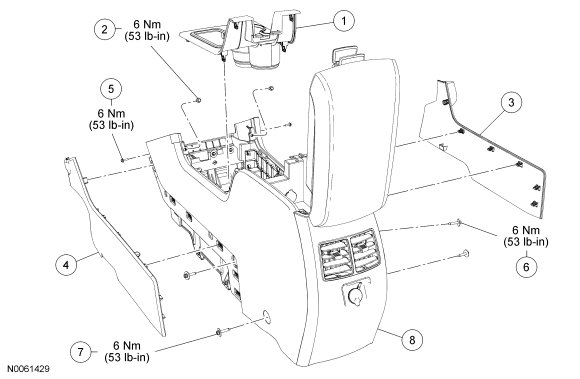

Fig 2: Exploded View Of MKX Floor Console With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	045A76	Floor console finish panel
2	W706862	Floor console-to-instrument panel bolt (2 required)
3	045M10	Floor console RH side panel
4	045M11	Floor console LH side panel
5	W706862	Floor console front side bolt (2 required)
6	W706862	Floor console center bolt (2 required)
7	W706862	Floor console rear bolt (2 required)
8	045A06	Floor console

All vehicles

Position the gear shift lever to NEUTRAL.

NOTE: The seats must be in the full raised position to access the bolts.

Position the seats forward and remove the 2 rear bolts.
- To install, tighten to 6 N.m (53 lb-in).
Remove the 2 console side panels.

NOTE: The seats must be in the full raised position to access the bolts.

Position the seats rearward and remove the 2 side panels and 2 center bolts.
- To install, tighten to 6 N.m (53 lb-in).
Remove the console finish panel.

MKX only

Remove the storage bin.
- Remove the 2 scrivets.
- Disconnect the power point electrical connector.
Remove the 2 console front side bolts.
- To install, tighten to 6 N.m (53 lb-in).

All vehicles

Remove the 2 console-to-instrument panel bolts.
- To install, tighten to 6 N.m (53 lb-in).
Disconnect the floor console electrical connector from the lower right front wiring harness.
Remove the floor console.
To install, reverse the removal procedure.
