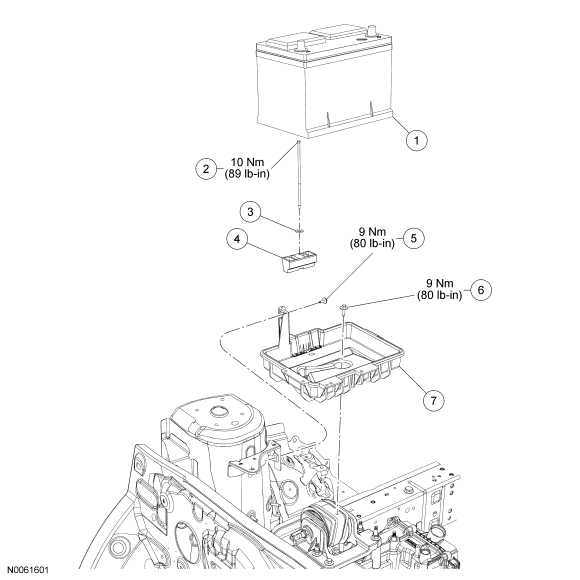

Battery and Battery Tray - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 10655 | Battery |
| 2 | N803471 | Battery hold-down bracket bolt |
| 3 | - | Battery hold-down bracket bolt washer (part of N803471) |
| 4 | - | Battery hold-down bracket |
| 5 | - | Battery tray-to-bracket bolt |
| 6 | - | Battery tray bolt |
| 7 | 10723 | Battery tray |
- For additional information, refer to the appropriate procedures.
