Liftgate Trim Panel
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

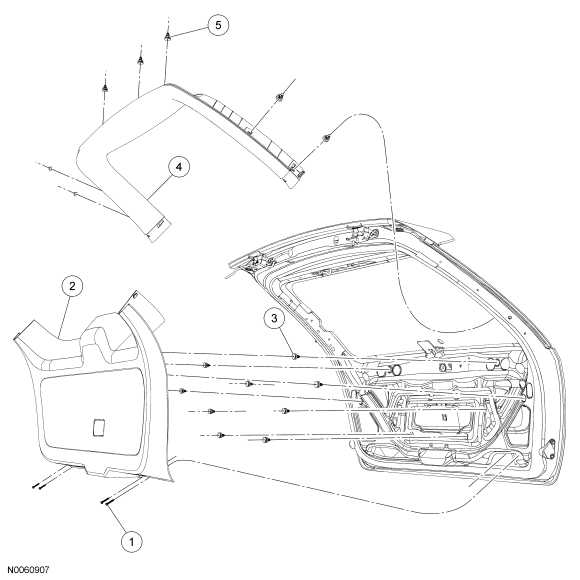

Non-powered liftgate shown, powered liftgate similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Liftgate lower trim panel screw (4 required) |
| 2 | 46404 | Liftgate lower trim panel |
| 3 | - | Liftgate lower trim panel retainer (11 required) |
| 4 | 42410 | Liftgate upper trim panel |
| 5 | - | Liftgate upper trim panel retainer (7 required) |
- Remove the power liftgate rod-to-liftgate cover and nut, if equipped.
- To install, tighten to 11 N.m (8 lb-ft).
- Remove the liftgate lower trim panel.
- Remove the 4 screws.
- Remove the liftgate lower trim panel.
- Remove the liftgate upper trim panel.
- To install, reverse the removal procedure.
