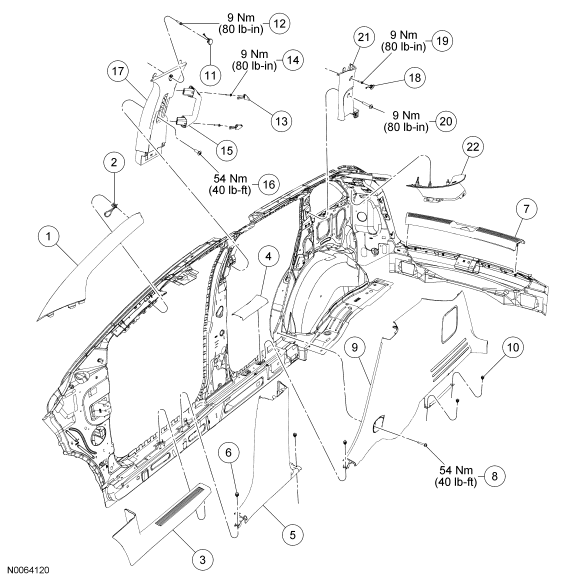

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Edge shown, MKX similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 03598 RH/ 03599 LH | A-pillar trim panel |
| 2 | - | A-pillar trim panel tether |
| 3 | 13208 RH/ 13209 LH | Front door scuff plate |
| 4 | 13244 RH/ 13245 LH | Rear door scuff plate |
| 5 | 24346 RH/ 24347 LH | B-pillar lower trim panel |
| 6 | - | B-pillar lower trim panel push pin retainer (2 required) |
| 7 | 42624 | Liftgate scuff plate |
| 8 | - | Quarter trim panel safety belt anchor bolt |
| 9 | 31012 RH/ 31013 LH | Quarter trim panel |
| 10 | - | Quarter trim panel push pin retainer (3 required) |
| 11 | - | B-pillar upper trim panel screw cover |
| 12 | W712518 | B-pillar upper trim panel screw |
| 13 | 31458 Upper/ 31459 Lower | B-pillar assist handle bolt cover (2 required) |
| 14 | W712518 | B-pillar assist handle bolt (2 required) |
| 15 | 31406 RH/ 31407 LH | B-pillar assist handle |
| 16 | - | B-pillar trim panel safety belt D-ring bolt |
| 17 | 24346 RH/ 24347 LH | B-pillar upper trim panel |
| 18 | - | C-pillar trim panel screw cover |
| 19 | W712518 | C-pillar trim panel screw |
| 20 | - | C-pillar trim panel safety belt D-ring bolt |
| 21 | 31004 RH/ 31005 LH | C-pillar trim panel |
| 22 | 31010 RH/ 31011 LH | D-pillar trim panel |
- For additional information, refer to the appropriate procedures.
