Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

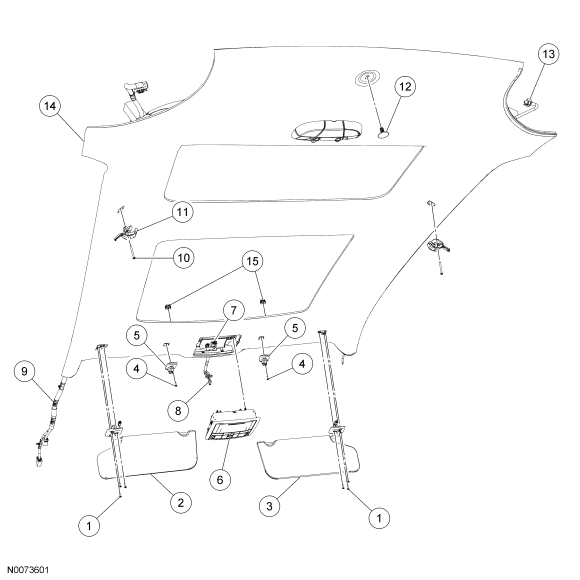

Headliner with roof opening panel shown, headliner without roof opening panel similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W504242 | Sun visor screws (3 required) |
| 2 | 04101 | Sun visor |
| 3 | 04100 | Sun visor |
| 4 | W504242 | Sun visor arm clip screws |
| 5 | 04132 | Sun visor arm clips |
| 6 | 78519A58 | Overhead console |
| 7 | - | Overhead console electrical connector |
| 8 | - | Rear view mirror electrical connector |
| 9 | 14334 | Headliner wiring harness |
| 10 | W504349 | Garment hanger screw |
| 11 | 29024 | Garment hanger |
| 12 | W708761 | Headliner push pin |
| 13 | 17409 | Headliner hose |
| 14 | 51944 | Headliner |
| 15 | - | Headliner magnets |
