Instrument Cluster (IC): Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

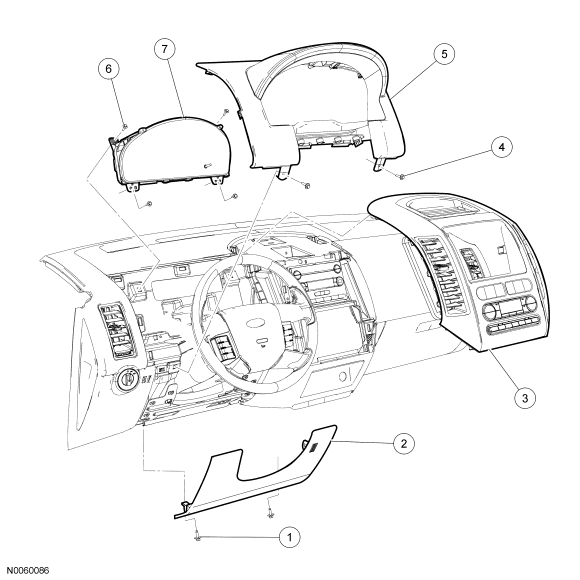

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W708268 |
Lower steering column cover screws (2 required) |
| 2 |
78044F08 |
Lower steering column cover |
| 3 |
78045C38 |
Instrument panel center finish panel |
| 4 |
W707628 |
Instrument cluster finish panel screws (2 required) |
| 5 |
78044D70 |
Instrument cluster finish panel |
| 6 |
W705314 |
Instrument cluster screws (4 required) |
| 7 |
10849 |
Instrument cluster |

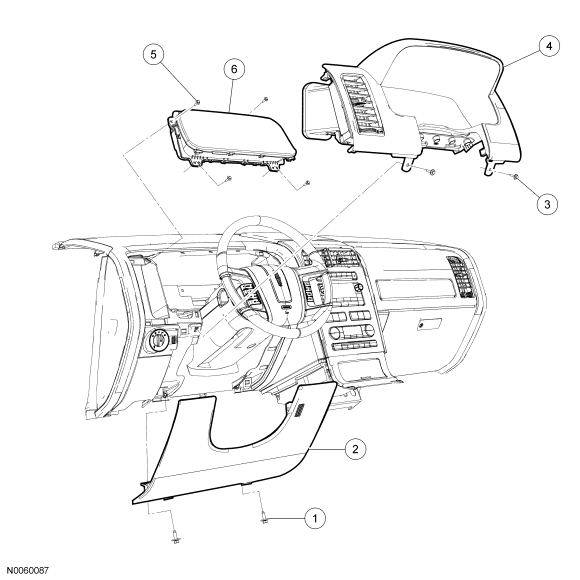

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W708268 |
Lower steering column cover screws (2 required) |
| 2 |
78044F08 |
Lower steering column cover |
| 3 |
W707628 |
Instrument cluster finish panel screws (2 required) |
| 4 |
7804403 |
Instrument cluster finish panel |
| 5 |
W705314 |
Instrument cluster screws (4 required) |
| 6 |
10849 |
Instrument cluster |
