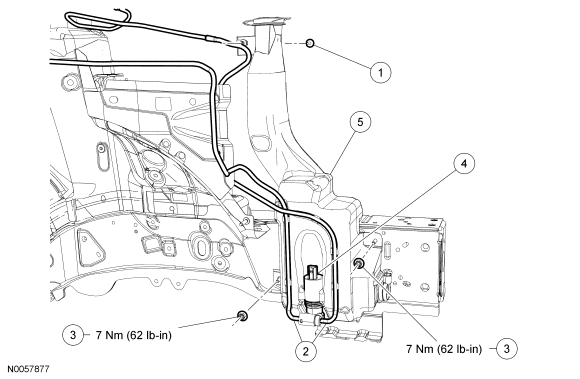

Wiper and Washer System - Exploded View, Washer Pump and Reservoir
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N807658 | Windshield washer reservoir filler neck retaining bolt |
| 2 | 17A605 | Windshield washer reservoir hoses |
| 3 | W702751 | Windshield washer reservoir nuts (2 required) |
| 4 | 17664 | Windshield washer pump |
| 5 | 17618 | Windshield washer reservoir |
- For additional information, refer to the appropriate procedures.
