Wiper and Washer System - Exploded View, Rear

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

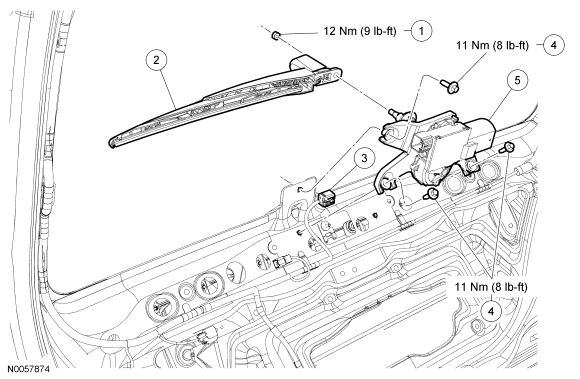

Fig 1: Exploded View Of Rear Wiper & Washer System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W708312	Rear wiper pivot arm nut
2	17526	Rear wiper pivot arm
3	-	Rear wiper motor electrical connector
4	N807658	Rear wiper motor screws (3 required)
5	17D400	Rear wiper motor

For additional information, refer to the appropriate procedures.
