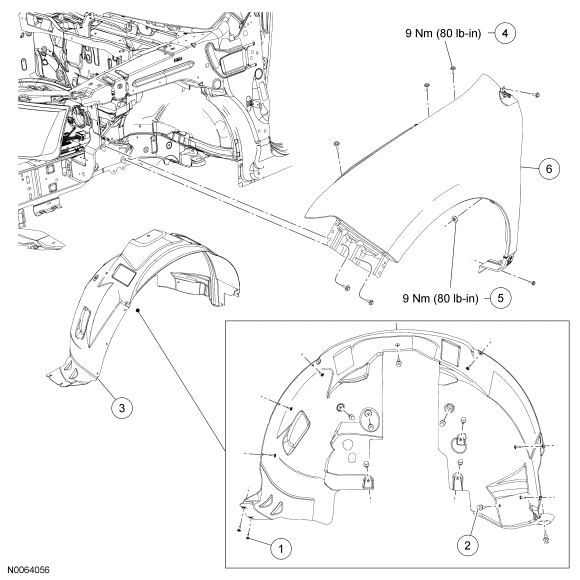

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706805 | Splash shield screw (8 required) |
| 2 | W712196 | Splash shield pin-type retainer (10 required) |
| 3 | 16054 RH/ 16055 LH | Splash shield |
| 4 | W505421 | Fender bolt (7 required) |
| 5 | W709603 | Fender rear nut |
| 6 | 16015 RH/ 16016 LH | Fender |
- For additional information, refer to the appropriate procedures.
