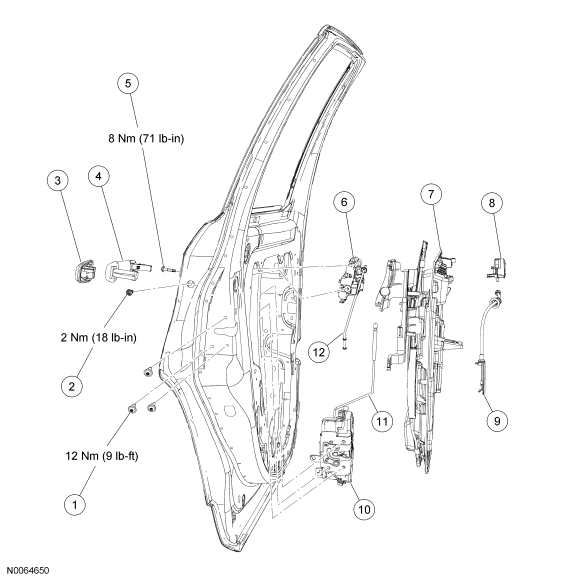

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710993 | Rear door latch bolts (3 required) |
| 2 | N807169 | Exterior rear door handle reinforcement screw |
| 3 | 78218B08 | Exterior rear door handle bezel |
| 4 | 7822404 | Exterior rear door handle strap |
| 5 | W712512 | Exterior rear door handle reinforcement bolt |
| 6 | 7826684/ 7826685 | Exterior rear door handle reinforcement (LH/RH) |
| 7 | 24994/24995 | Rear door panel component module assembly (LH/RH) |
| 8 | 7822600/ 7822601 | Interior rear door handle (LH/RH) |
| 9 | 78221A00 | Interior rear door handle actuating cable |
| 10 | 7821812/ 7821813 | Rear door latch (LH/RH) |
| 11 | 7821852/ 7821853 | Rear door lock actuating rod (LH/RH) |
| 12 | 7822152/ 7822153 | Exterior rear door handle actuating rod (LH/RH) |
- For additional information, refer to the appropriate procedures.
