Liftgate Handle, Lock and Latch - Exploded View

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

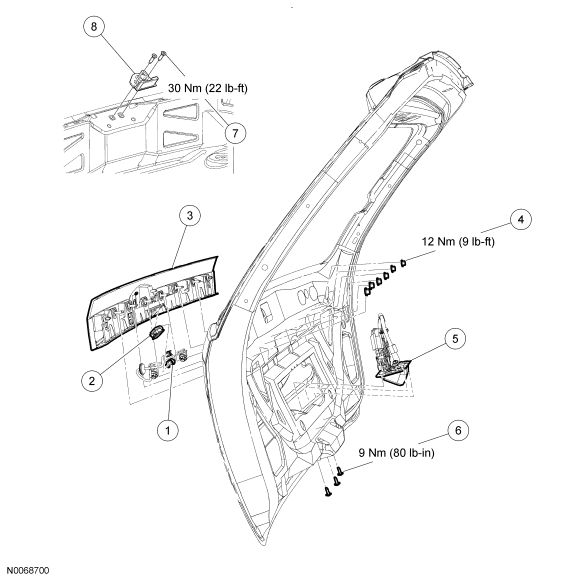

Fig 1: Exploded View Of Liftgate Handle, Lock & Latch With Torque Specifications - Manual Liftgate

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Liftgate release switch electrical connector (part of 14A583)
2	14018	Liftgate release switch
3	13508	Liftgate release switch molding
4	W705760-S424	Liftgate release switch molding nuts (5 required)
5	7843150	Liftgate latch
6	N807675-S101	Liftgate latch screws (3 required)
7	W709726-S424	Liftgate striker bolts (2 required)
8	7843252	Liftgate striker

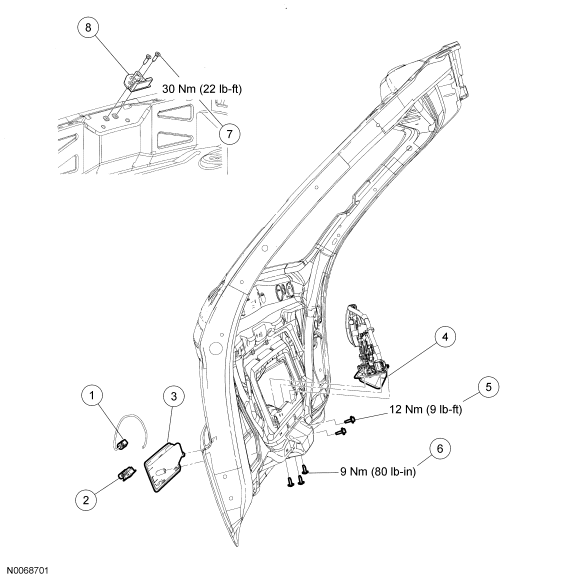

Fig 2: Exploded View Of Liftgate Handle, Lock & Latch With Torque Specifications - Power Liftgate

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Liftgate release switch electrical connector (part of 14A583)
2	14018	Liftgate release switch
3	13508	Liftgate release switch molding
4	7843150	Liftgate latch
5	W505423-S439	Liftgate release switch molding bolts (2 required)
6	N807675-S101	Liftgate latch screws (3 required)
7	W709726-S424	Liftgate striker bolts (2 required)
8	7843252	Liftgate striker

For additional information, refer to the appropriate procedures.
