Ignition Lock Cylinder: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

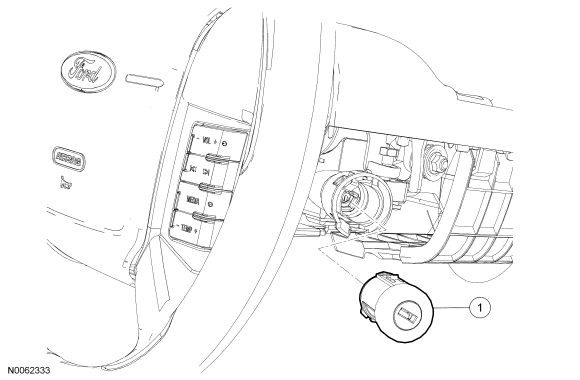

Fig 1: Exploded View Of Ignition Lock Cylinder
GF0031043Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11582 Ignition lock cylinder
