Hood Latch and Components - Exploded View

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

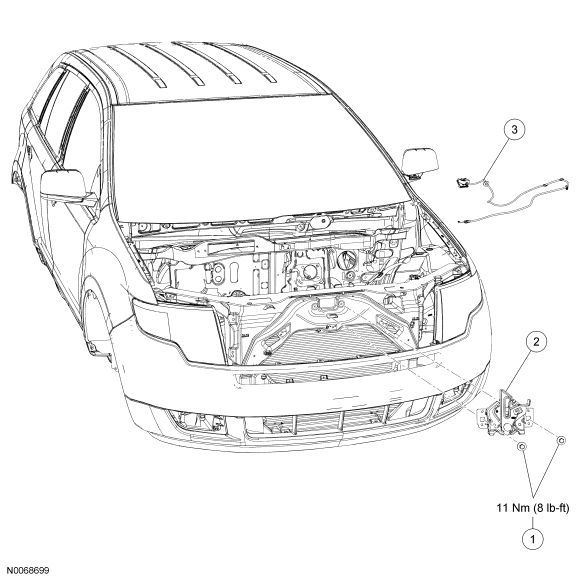

Fig 1: Exploded View Of Hood Latch and Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808727	Hood latch bolts (2 required)
2	16700	Hood latch
3	16916	Hood latch release handle and cable

For additional information, refer to the appropriate procedures.
