Intermediate Shaft Seal and Deflector: Removal

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The Power Transfer Unit (PTU) may leak different color fluids, red oil leak for automatic transmission fluid and brown/black gear lube for PTU fluid. The PTU seals prevent these types of fluids from leaking. It is important to note which color fluid is leaking to determine the most appropriate service procedure. This procedure will correct a red oil leak (automatic transmission fluid) from the intermediate shaft seal on the RH side of the PTU. For additional information, refer to Analysis of Leakage in this section.
NOTE: This procedure is to be performed through the RH wheel opening. It is not necessary to remove the exhaust components to complete this repair.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the RH front wheel and tire. Refer to REMOVAL
  3. Apply the brake to keep the halfshaft from rotating and remove the front wheel hub nut.
    • Do not discard the nut at this time.

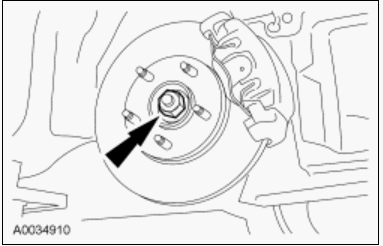

      Fig 1: Front Wheel Hub Nut
      G00500699Courtesy of FORD MOTOR CO.
  4. Remove the brake flexible hose bracket bolt and disconnect the hose from the shock absorber.

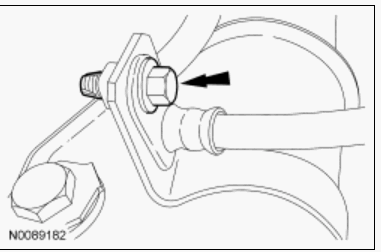

    Fig 2: Flexible Hose Bracket Bolt
    G00500700Courtesy of FORD MOTOR CO.
  5. Disconnect the wheel speed sensor harness from the shock absorber bracket.

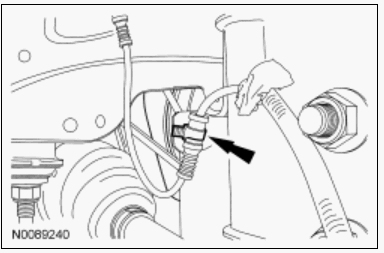

    Fig 3: Wheel Speed Sensor Harness
    G00500701Courtesy of FORD MOTOR CO.
  6. Remove the RH brake disc. For additional information, refer to REMOVAL .
  7. NOTE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.
  8. Remove and discard the upper stabilizer bar link nut.
    • Position the stabilizer bar link aside.
      Fig 4: Stabilizer Bar Link Nut
      G00500702Courtesy of FORD MOTOR CO.
  9. Remove and discard the ball joint-to-knuckle bolt and nut.
    • Separate the lower control arm from the knuckle.

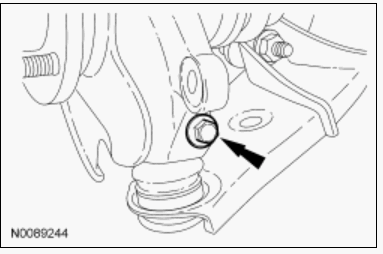

      Fig 5: Ball Joint-To-Knuckle Bolt And Nut
      G00500703Courtesy of FORD MOTOR CO.
  10. Using the Front Wheel Hub Remover, separate the halfshaft from the wheel hub.

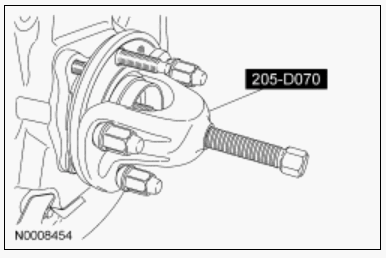

    Fig 6: Front Wheel Hub Remover
    G00500704Courtesy of FORD MOTOR CO.
  11. Pull the knuckle outboard and rotate it toward the rear of the vehicle.
    • Secure the knuckle assembly.
  12. NOTE: It is not necessary to separate the halfshaft from the intermediate shaft for this repair.
  13. Remove the 2 intermediate shaft bracket bolts and the intermediate and halfshaft assembly.
    • Inspect the intermediate shaft for pitting or damage in the seal contact area. Replace if necessary.
  14. NOTE: The following instruction will prevent the Bearing Cup Remover from opening too far which would make removing the intermediate shaft seal deflector difficult.
    Fig 7: Bearing Cup Remover And Washer
    G00500707Courtesy of FORD MOTOR CO.
    CAUTION: Failure to utilize the recommend tools may result in serious damage to the Power Transfer Unit (PTU).
  15. Place a 16 mm (5/8 in) washer between the components of the Bearing Cup Remover as shown.
  16. Assemble the special tools as indicated in the following table and illustration:
    Item  Description
    1 308-125
    2 Extension for 205-241
    3 5-pound or larger slide hammer
    Fig 8: Bearing Cup Remover, Extension From The Halfshaft Remover, And A Suitable Slide Hammer
    G00500708Courtesy of FORD MOTOR CO.
  17. NOTE: Using a 5-pound or larger slide hammer eases the removal of the seal deflector.
  18. Using the Bearing Cup Remover, the extension from the Halfshaft Remover, and a suitable slide hammer, remove the seal deflector.
    • The seal deflector will have been damaged during removal. Remove all foreign material from the PTU before continuing with the repair.

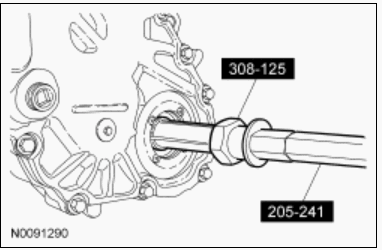

      Fig 9: Bearing Cup Remover, And Extension From Halfshaft Remover
      G00500709Courtesy of FORD MOTOR CO.
  19. Using the Bearing Cup Remover, the extension from the Halfshaft Remover, and a suitable slide hammer, remove the intermediate shaft seal, and if equipped, the alignment washer.

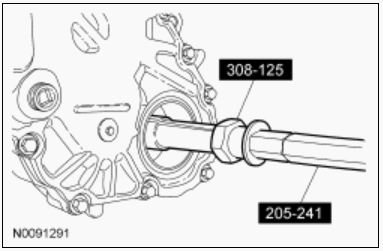

    Fig 10: Bearing Cup Remover, And Extension From Halfshaft Remover
    G00500710Courtesy of FORD MOTOR CO.
