Cover Seal: Installation

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the Driver Handle, the Halfshaft Oil Seal Installer and the Shaft Bearing Cup Installer as shown.
    2. Fig 1: Proper Assembly Of Driver Handle, Halfshaft Oil Seal Installer And Shaft Bearing Installer
    G00500690Courtesy of FORD MOTOR CO.
  2. Using the Driver Handle, the Halfshaft Oil Seal Installer and the Shaft Bearing Cup Installer, install the cover seal in the PTU.

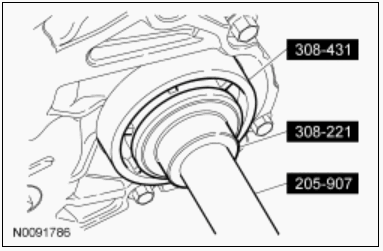

    3. Fig 2: Using Driver Handle, Halfshaft Oil Seal Installer And The Shaft Bearing Cup Installer To Install Cover Seal In PTU
    G00500691Courtesy of FORD MOTOR CO.
  3. Install the intermediate shaft seal and deflector. For additional information, refer to Intermediate Shaft Seal and Deflector .
  4. Fill the PTU as necessary. For additional information, refer to Intermediate Shaft Seal and Deflector .
