Wheel Knuckle: Removal

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure correct retention of these parts.
CAUTION: Suspension bushing fasteners must be tightened with the weight of the vehicle resting on the wheel and tires or incorrect clamp load and bushing damage may occur.
  1. Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .
    2. CAUTION: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.
  2. Remove the 2 anchor plate bolts and position the brake caliper and anchor plate assembly aside.
    • Support the brake caliper and anchor plate assembly using mechanic's wire.
  3. Remove the brake disc.
  4. Disconnect the parking brake shoe retaining spring and remove the spring and brake shoe assembly.
  5. Remove the 2 bolts and disconnect the parking brake cable.
  6. Remove the nut and disconnect the stabilizer bar link and parking brake cable bracket from the wheel knuckle.
    • Discard the nut.
  7. Remove the bolt, unclip the 2 retainers and position aside the wheel speed sensor.
  8. Remove the brake hose bracket bolt.

    9. All wheel drive (AWD) vehicles

  9. Remove and discard the outer and inner halfshaft nuts.
  10. Using the special tool, separate the halfshaft from the wheel bearing and wheel hub.
    11. Fig 1: Separating Halfshaft From Wheel Bearing & Wheel Hub Using Special Tool (205-D070)
    GF0031477Courtesy of FORD MOTOR CO.

    All vehicles

  11. Position a suitable jackstand under the lower arm.
    12. Fig 2: Positioning Suitable Jackstand Under Lower Arm
    GF0031478Courtesy of FORD MOTOR CO.
  12. Remove and discard the lower shock bolt and nut.
  13. Remove and discard the upper arm outboard bolt and nut.
  14. Remove and discard the lower arm outboard bolt and nut.
  15. Remove and discard the toe link outboard bolt and nut.

    16. AWD vehicles

  16. Position the halfshaft through the wheel knuckle opening and secure the halfshaft aside.

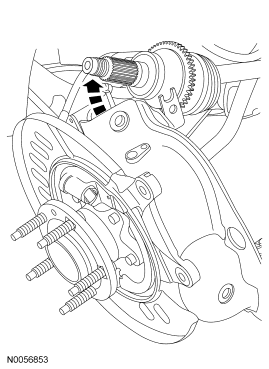

    17. Fig 3: Positioning Halfshaft Through Wheel Knuckle Opening & Secure Halfshaft Aside
    GF0031479Courtesy of FORD MOTOR CO.

    All vehicles

  17. Remove the 5 wheel knuckle bracket-to-frame bolts and the wheel knuckle.
    • Discard the bolts.
  18. Remove and discard the wheel knuckle bracket bolt nut.
