Wheel Knuckle: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Front Hub Remover	205-D070 (D93P-1175-B) or equivalent

NOTE: All wheel drive (AWD) shown, front wheel drive (FWD) similar.

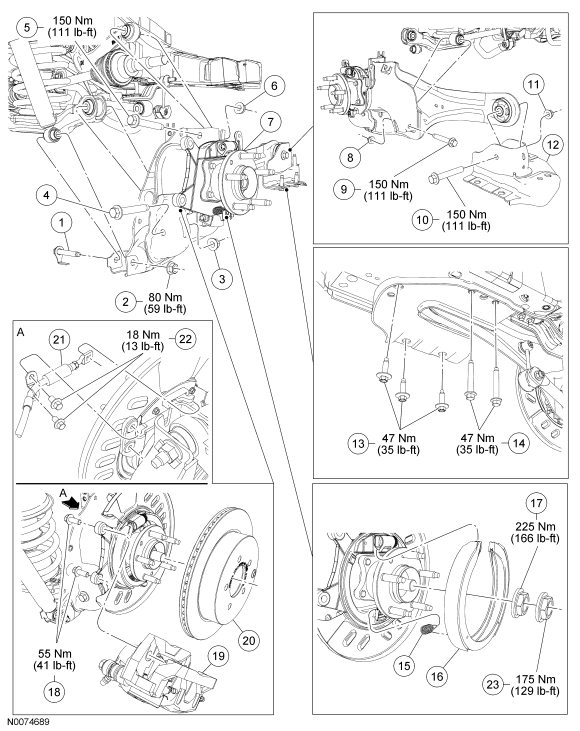

Fig 1: Wheel Knuckle Replacement Components With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712459	Shock absorber lower flag bolt
2	W520214	Shock absorber lower nut
3	W520516	Lower arm outboard nut
4	W500766	Lower arm outboard bolt
5	W500766	Upper arm outboard bolt
6	W520516	Upper arm outboard nut
7	5A995 LH/ 5A994 RH	Wheel knuckle
8	W520516	Toe link outboard nut
9	W500766	Toe link outboard bolt
10	W500568	Wheel knuckle bracket bolt
11	W520516	Wheel knuckle bracket nut
12	5A757 RH/ 5A758 LH	Wheel knuckle arm bracket
13	W713905	Wheel knuckle bracket-to-frame bolts (3 required)
14	W500724	Wheel knuckle bracket-to-frame bolts (2 required)
15	-	Parking brake spring
16	-	Parking brake shoe
17	W712435	Inner halfshaft nut
18	W711241	Brake anchor plate bolts (2 required)
19	-	Brake caliper and anchor plate assembly
20	2C203	Brake disc
21	2A635	Parking brake cable
22	W500021	Parking brake cable rear bracket bolts (2 required)
23	W712435	Outer halfshaft nut

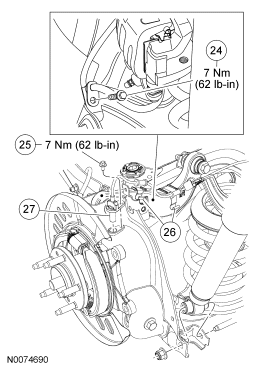

Fig 2: Wheel Knuckle Replacement Components With Torque Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
24	-	Wheel speed sensor bolt (part of 2C190)
25	2C190	Wheel speed sensor
26	-	Wheel speed sensor harness clips
27	W500010	Wheel speed sensor bolt
