Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Front Hub Remover | 205-D070 (D93P-1175-B) or equivalent |

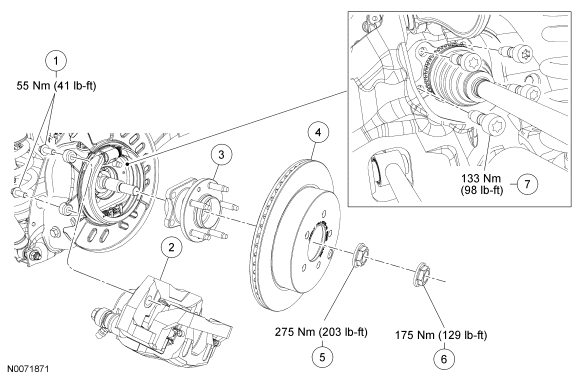

Fig 1: Exploded View Of Wheel Bearing & Wheel Hub With Torque Specifications - All Wheel Drive (AWD) Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W711240 | Brake caliper anchor plate bolts (2 required) |
| 2 | - | Brake caliper and anchor plate assembly |
| 3 | 2C299 | Wheel hub and bearing assembly |
| 4 | 2C026 | Brake disc |
| 5 | W712435 | Halfshaft nut (inner) |
| 6 | W712435 | Halfshaft nut (outer) |
| 7 | W712754 | Wheel bearing and wheel hub bolt (4 required) |

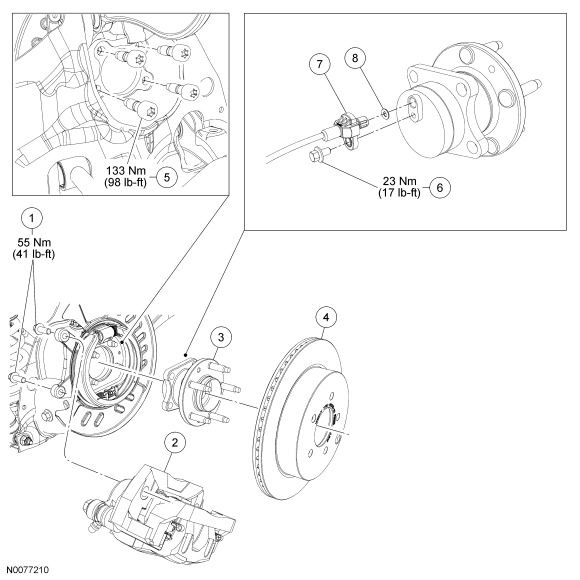

Fig 2: Exploded View Of Wheel Bearing & Wheel Hub With Torque Specifications - Front Wheel Drive (FWD) Vehicles
| Item | Part Number | Description |
|---|---|---|
| 1 | W711240 | Brake caliper anchor plate bolts (2 required) |
| 2 | - | Brake caliper and anchor plate assembly |
| 3 | 2C299 | Wheel hub and bearing assembly |
| 4 | 2C203 | Brake disc |
| 5 | W712754 | Wheel bearing and wheel hub bolt (4 required) |
| 6 | W500222 | Wheel speed sensor bolt |
| 7 | 2C186 RH/ 2C187 LH | Wheel speed sensor |
