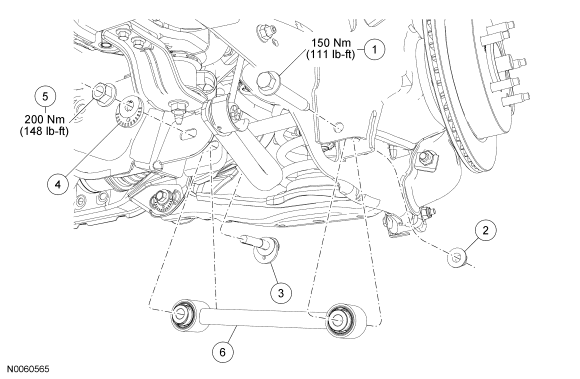

Toe Link: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500766 |
Toe link outboard bolt |
| 2 |
W520516 |
Toe link outboard nut |
| 3 |
5K978 |
Toe link inboard cam bolt |
| 4 |
5K751 |
Toe link adjuster cam |
| 5 |
W711798 |
Toe link inboard nut |
| 6 |
5B674 |
Toe link |
