Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Front Hub Remover | 205-D070 (D93P-1175-B) or equivalent |

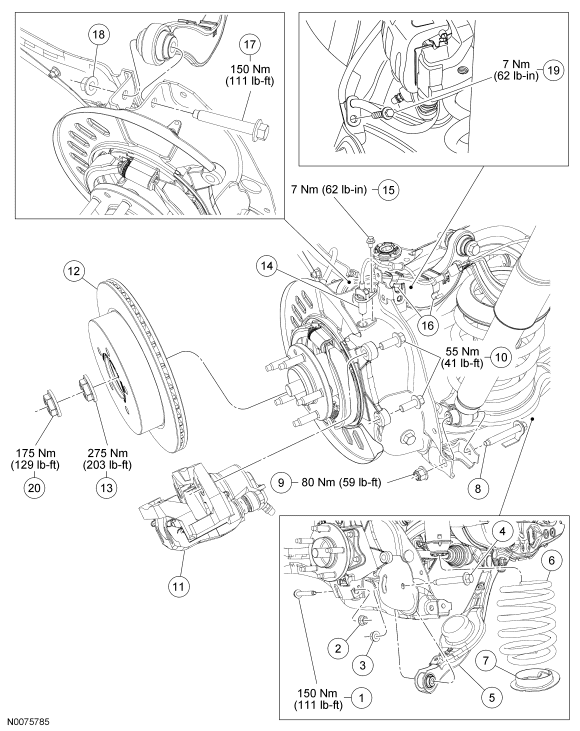

| Item | Part Number | Description |
|---|---|---|
| 1 | W500766 | Toe link outboard bolt |
| 2 | W520516 | Toe link outboard nut |
| 3 | W520516 | Lower arm outboard nut |
| 4 | W500766 | Lower arm outboard bolt |
| 5 | 5A648 | Lower arm |
| 6 | - | Spring |
| 7 | - | Spring lower seat |
| 8 | W712459 | Shock absorber lower flag bolt |
| 9 | W520214 | Shock absorber lower nut |
| 10 | W711241 | Brake caliper anchor plate bolts (2 required) |
| 11 | - | Brake caliper and anchor plate assembly |
| 12 | 2C203 | Brake disc |
| 13 | W712435 | Inner halfshaft nut |
| 14 | 2C190 | Wheel speed sensor |
| 15 | W500010 | Wheel speed sensor bolt |
| 16 | - | Wheel speed sensor harness clips (2 required) |
| 17 | W500766 | Upper arm outboard bolt |
| 18 | W520516 | Upper arm outboard nut |
| 19 | - | Wheel speed sensor bolt (part of 2C190) |
| 20 | W712435 | Outer halfshaft nut |
