Lower Arm
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

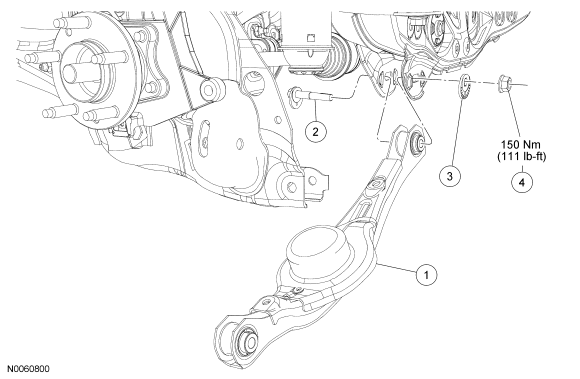

| Item | Part Number | Description |
|---|---|---|
| 1 | 5A648 | Lower arm |
| 2 | 5K978 | Lower arm cam bolt |
| 3 | 5K751 | Lower arm cam adjuster |
| 4 | W711798 | Lower arm cam nut |
- Remove the spring. For additional information, refer to Spring .
- Remove the cam adjuster nut, cam adjuster and cam bolt.
- Discard the cam bolt and nut.
- To install, tighten to 150 Nm (111 lb-ft).
- To install, reverse the removal procedure.
