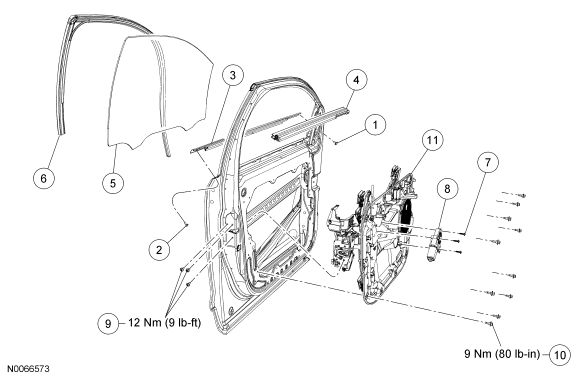

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W709451 | Weatherstrip A-pillar screw |
| 2 | W709451 | Weatherstrip B-pillar screw |
| 3 | 5421453 LH/ 5421452 RH | Exterior door window glass molding |
| 4 | 5421434 | Interior door window glass molding |
| 5 | 5421411 LH/ 5421410 RH | Front door window glass |
| 6 | 5421597 LH/ 5421597 RH | Door window glass top run |
| 7 | 166193 | Window motor screw (3 required) |
| 8 | 14A389 LH/ 14553 RH | Window motor |
| 9 | N811471 | Door latch screws (3 required) |
| 10 | W713426 | Door module bolt (10 required) |
| 11 | 013300 LH/ 203A28 RH | Door module |
- For additional information, refer to the appropriate procedures.
