Transfer Shaft and Gear: Assembly

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park pawl wheel on the transfer shaft.
    2. Fig 1: Installing Park Pawl Wheel On Transfer Shaft
    GF0031793Courtesy of FORD MOTOR CO.
  2. Using the special tools and a press, install new transfer shaft bearings on the transfer shaft assembly.

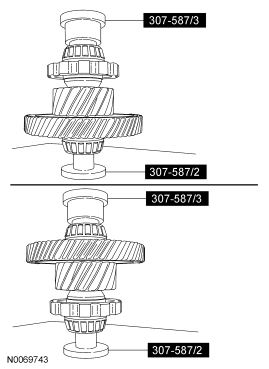

    3. Fig 2: Installing Transfer Shaft Bearings On Transfer Shaft Assembly Using Special Tools (307-587/1, 307-587/2)
    GF0031794Courtesy of FORD MOTOR CO.
