Transmission Fluid Cooler: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

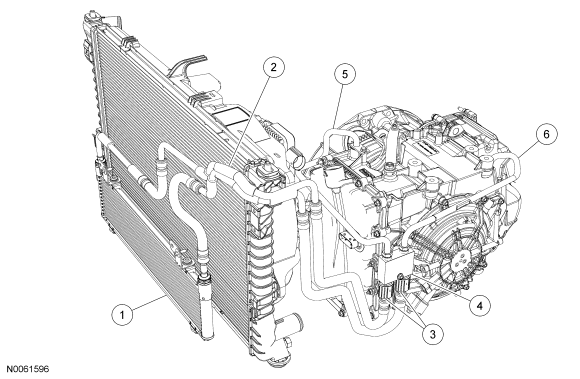

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Transmission fluid cooler |
| 2 | - | Transmission fluid cooler tube assembly |
| 3 | - | Transmission fluid cooler tube secondary latches |
| 4 | - | Transmission fluid cooler thermal bypass valve |
| 5 | - | Transmission fluid cooler outlet tube |
| 6 | - | Transmission fluid cooler return tube |
When internal wear or damage has occurred in the transaxle, metal particles, clutch plate material or band material may have been carried into the torque converter and transaxle fluid cooler. These contaminants are a major cause of recurring transaxle troubles and must be removed from the system before the transaxle is put back into use. Refer to Transmission Fluid Cooler Backflushing and Cleaning .
