Torque Converter
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
The torque converter transmits and multiplies torque. The torque converter is a 4-element device:
- Impeller assembly
- Turbine assembly
- Reactor assembly
- Clutch and damper assembly
The standard torque converter components operate as follows:
- Rotation of the converter housing and impeller set the fluid in motion.
- The turbine reacts to the fluid motion from the impeller, transferring rotation to the geartrain through the input shaft.
- The reactor redirects fluid going back into the impeller, providing for torque multiplication.
- The clutch and damper assembly dampens powertrain torsional vibration and provides a direct mechanical connection for improved efficiency.
- Power is transmitted from the torque converter to the planetary gear sets and other components through the input shaft.

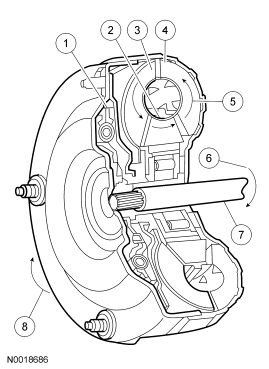

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Converter clutch and damper (part of 7902) |
| 2 | - | Reactor (part of 7902) |
| 3 | - | Turbine (part of 7902) |
| 4 | - | Impeller (part of 7902) |
| 5 | - | Fluid motion |
| 6 | - | Transmission input rotation |
| 7 | - | Input shaft |
| 8 | - | Engine rotation |
