Lower End Components - Exploded View, Crankshaft Pulley and Crankshaft Front Seal

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

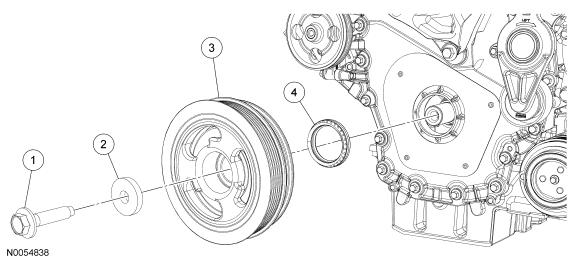

Fig 1: Exploded View Of Crankshaft Pulley & Crankshaft Front Seal - Lower End Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701512	Crankshaft pulley bolt
2	N806165	Washer
3	6316	Crankshaft pulley
4	6700	Crankshaft front seal

For additional information, refer to the =appropriate procedures.
