Variable Camshaft Timing (VCT) Oil Control Solenoid : Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

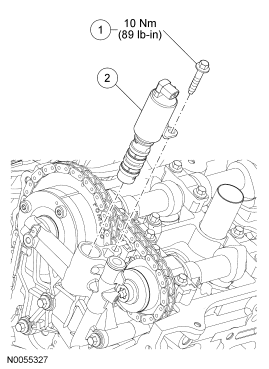

Fig 1: Exploded View Of Variable Camshaft Timing (VCT) Oil Control Solenoid With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W500215
Variable camshaft timing (VCT) oil control solenoid bolt
