Cooling Fan Motor and Shroud: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

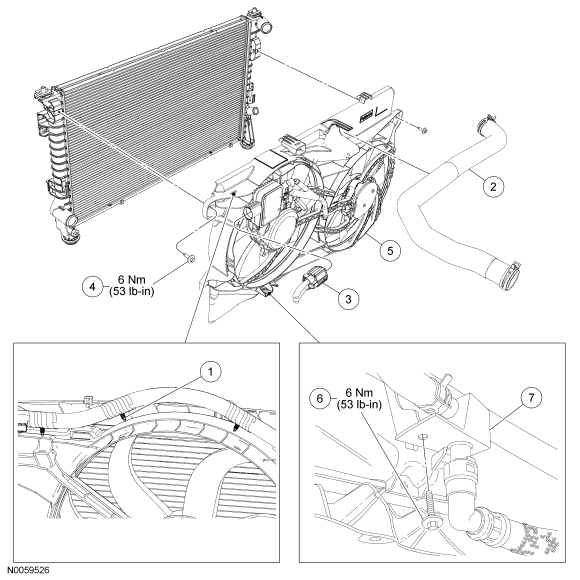

| Item | Part Number | Description |
|---|---|---|
| 1 | 13A506 | Wiring harness retainer |
| 2 | 8B274 | Upper radiator hose |
| 3 | 14A464 | Cooling fan motor and shroud electrical connector |
| 4 | W503924 | Cooling fan motor and shroud bolt (2 required) |
| 5 | 8C607 | Cooling fan motor and shroud |
| 6 | W503924 | Oil cooler bracket bolt (if equipped) |
| 7 | - | Oil cooler bracket (if equipped) |
