Removal And Installation: Halfshaft: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Axle Seal Protector | 205-816 | |
| Front Hub Remover | 205-D070 (D93P-1175-B) or equivalent |

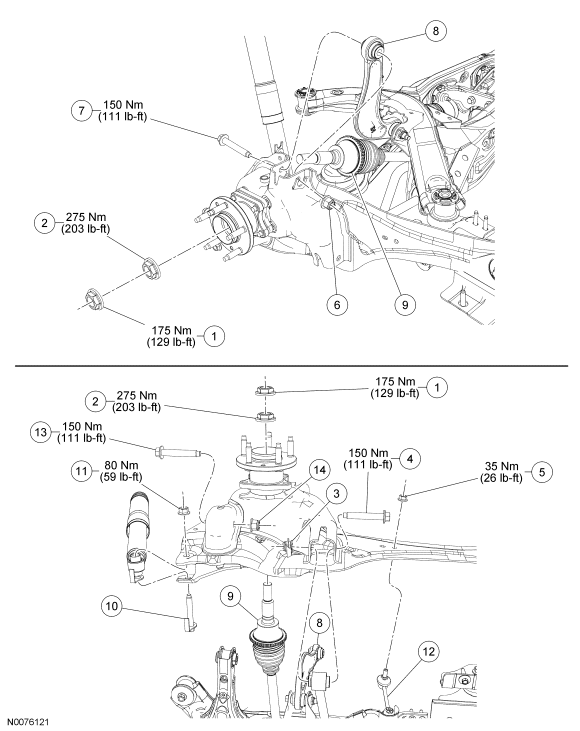

| Item | Part Number | Description |
|---|---|---|
| 1 | W712435 | Outer hub bearing nut |
| 2 | W712435 | Inner hub bearing nut |
| 3 | W520516 | Toe link outboard nut |
| 4 | W500766 | Toe link outboard bolt |
| 5 | W520414 | Stabilizer bar link nut |
| 6 | W520516 | Upper arm outboard nut |
| 7 | W500766 | Upper arm outboard bolt |
| 8 | 5500 | Upper control arm |
| 9 | 4B402 | Halfshaft assembly |
| 10 | W712459 | Lower shock absorber flag bolt |
| 11 | W520214 | Lower shock absorber nut |
| 12 | 5A486 | Stabilizer bar link |
| 13 | W500766 | Lower arm outboard bolt |
| 14 | W520516 | Lower arm outboard nut |
