Drive Pinion Seal: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| 2-Jaw Puller | 205-D072 (D97L-4221-A) or equivalent | |
| Converter Seal Remover | 307-309 (T94P-77001-BH) | |
| Holding Fixture, Drive Pinion Flange | 205-126 (T78P-4851-A) | |
| Pinion Seal Replacer | 205-133 (T79P-4676-A) | |
| Slide Hammer | 100-001 (T50T-100-A) |
Material
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

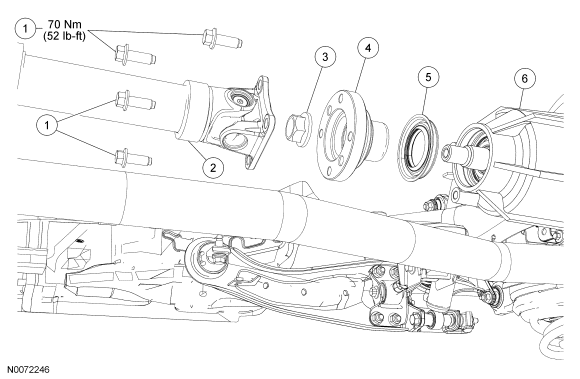

| Item | Part Number | Description |
|---|---|---|
| 1 | W711918-S | Rear driveshaft flange-to-pinion flange bolts (4 required) |
| 2 | 4K357 | Driveshaft |
| 3 | 4320 | Drive pinion nut |
| 4 | 4858 | Drive pinion flange |
| 5 | 4676 | Drive pinion seal |
| 6 | 49924 | Coupler housing |
