Wheel and Tire: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

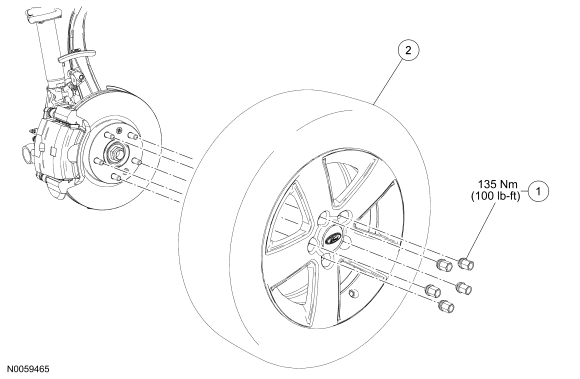

Fig 1: Exploded View Of Wheel Nuts & Tire With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1012	Wheel nut (5 required)
2	-	Wheel and tire assembly
