Wheel Bearing and Wheel Hub: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Pinion Bearing Cone Remover | 205-D002 (D79L-4621-A) or equivalent | |
| Installer, Wheel Hub Bearing Cup | 205-147 | |
| Remover/Installer, Wheel Hub Cup | 204-020 | |
| Stop Plate | 205-117 |

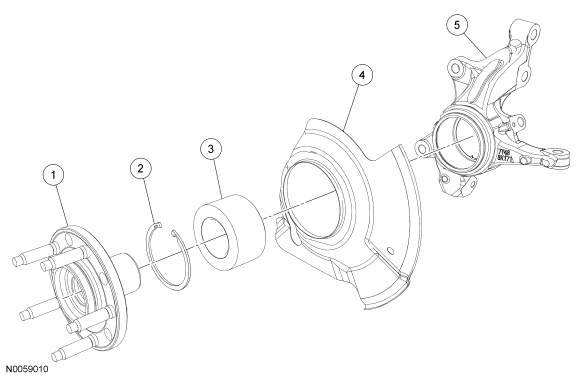

| Item | Part Number | Description |
|---|---|---|
| 1 | 1104 | Wheel hub |
| 2 | 3B625 | Snap ring |
| 3 | 1215 | Wheel bearing |
| 4 | 2K005 LH/ 2K004 RH | Brake disc shield |
| 5 | 3K171 LH/ 3K170 RH | Wheel knuckle |
