Intermediate Shaft - Front Wheel Drive (FWD): Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
	Seal Protector, Rear Axle Shaft	205-816

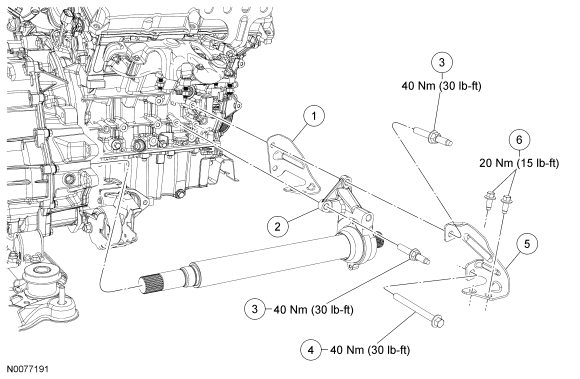

Fig 1: Exploded View Of Intermediate Shaft - Front Wheel Drive (FWD) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5G288	Exhaust converter bracket
2	3K183	Intermediate shaft assembly
3	W500235-S	Bracket-to-block bolts (2 required)
4	W500131	Bracket-to-block bolt
5	5G288	Exhaust converter bracket
6	W500210	Exhaust converter bracket bolts (2 required)
