Halfshaft - RH: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Remover, Front Wheel Hub | 205-D070 (D93P-1175-B) or equivalent |

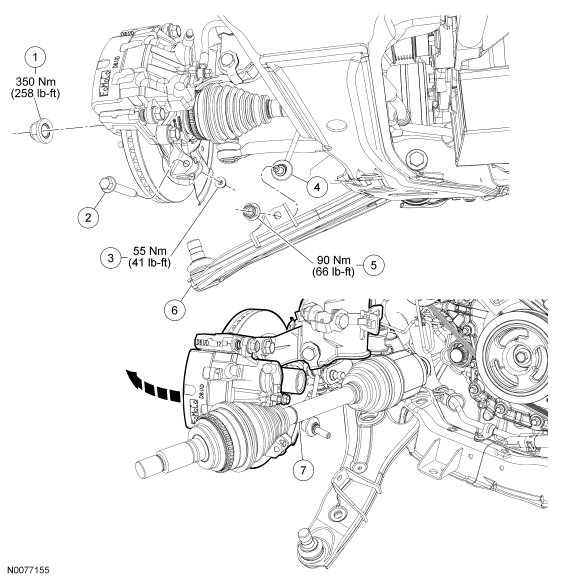

| Item | Part Number | Description |
|---|---|---|
| 1 | 3N404 | Wheel hub nut |
| 2 | W712481 | Ball joint pinch bolt |
| 3 | W520213 | Ball joint pinch nut |
| 4 | 3B438 | Stabilizer bar link |
| 5 | W520214 | Stabilizer bar link nut |
| 6 | 3A423 | Lower arm |
| 7 | 3A427 | Halfshaft assembly |
