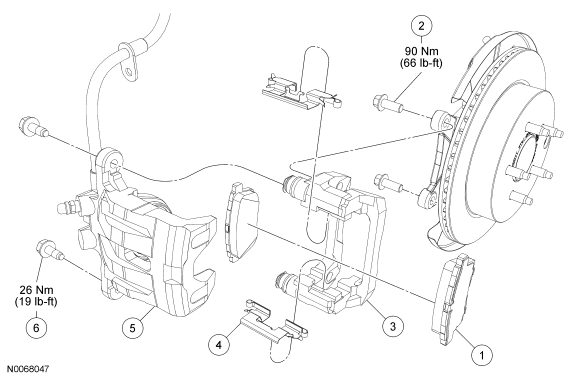

Rear Brake Caliper Anchor Plate: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2200 | Brake pad (2 required) |
| 2 | W711241 | Brake caliper anchor plate bolt (2 required) |
| 3 | - | Brake caliper anchor plate |
| 4 | - | Brake pad slide clip (2 required) (part of 2200) |
| 5 | 2552 RH/ 2553 LH | Brake caliper |
| 6 | - | Brake caliper guide pin bolt (2 required) |
