Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column cover.

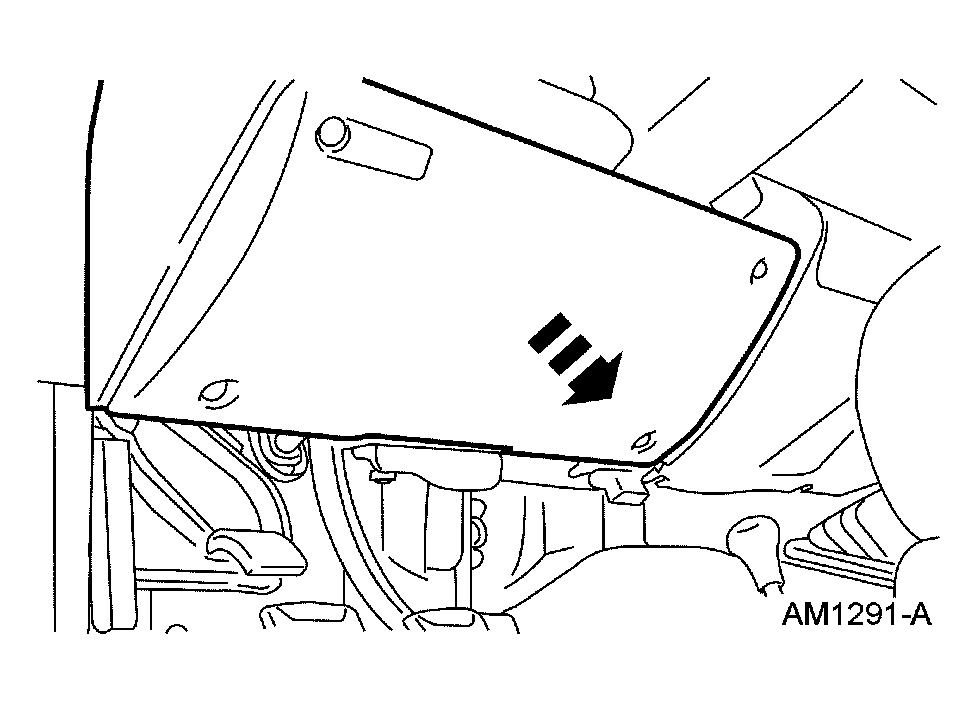

Fig 1: Removing Steering Column Cover
Courtesy of FORD MOTOR CO.
Release the clips and detach the in-vehicle temperature sensor.

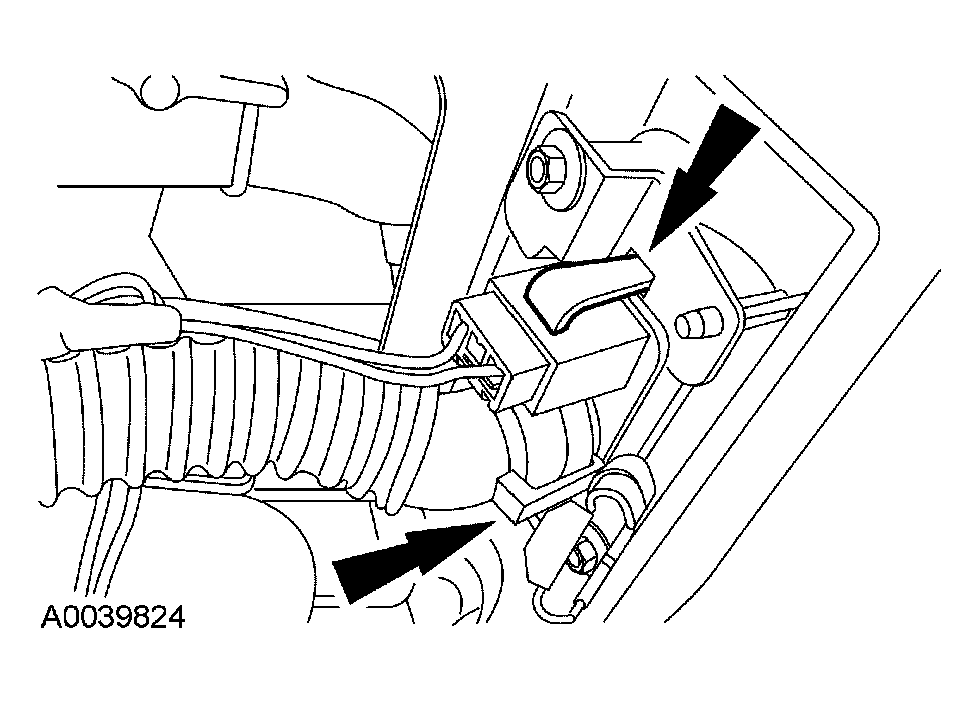

Fig 2: Releasing Clips And Detaching In-Vehicle Temperature Sensor
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and the venturi hose and remove the in-vehicle temperature sensor.

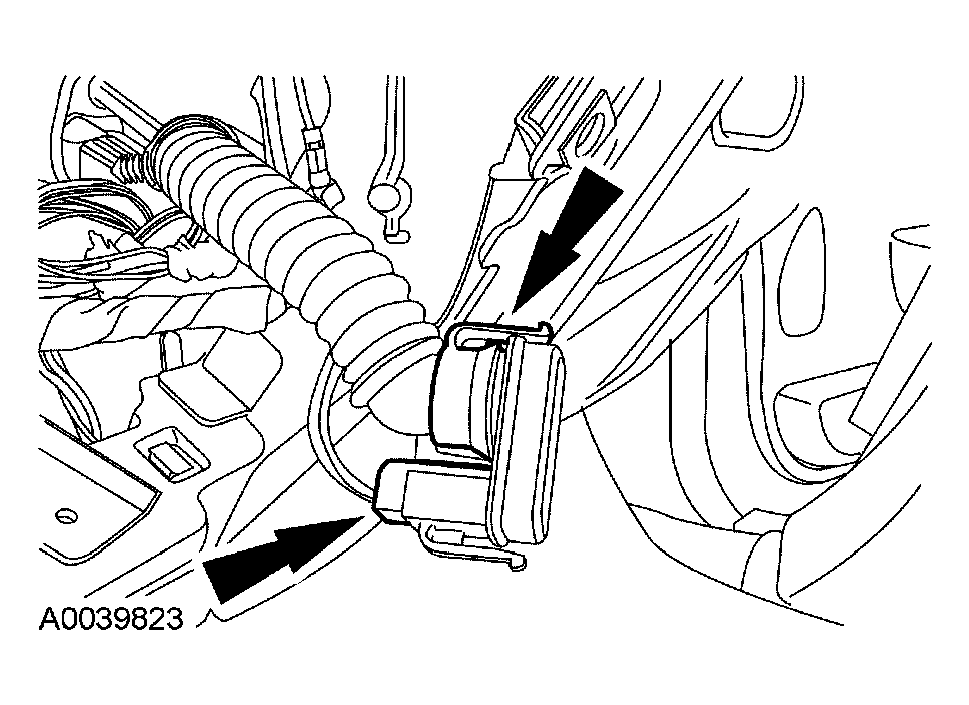

Fig 3: Disconnecting Electrical Connector And Venturi Hose And Removing In-Vehicle Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
