Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

Vehicles without remote audio controls

Release the tabs and remove the speed control switches.
- Cut the wire ties.
- Disconnect the electrical connector.

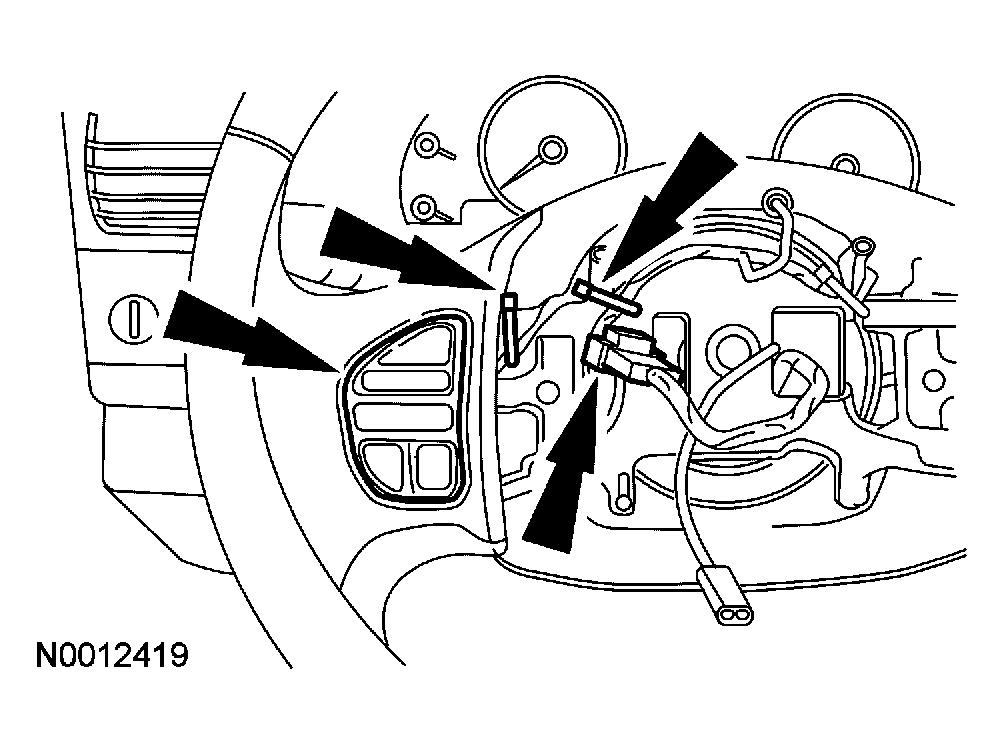

  Fig 1: Disconnecting Electrical Connector (Vehicles Without Remote Audio Controls)
  Courtesy of FORD MOTOR CO.

Vehicles with remote audio controls

CAUTION: When removing the speed control switch, be careful not to damage the leather wrap tied around the switch.

Cut the wire ties and remove the speed control switch.
- Disconnect the electrical connectors.

  Fig 2: Disconnecting Electrical Connector (Vehicles With Remote Audio Controls)
  Courtesy of FORD MOTOR CO.

All vehicles

NOTE: New wire ties need to be installed when this procedure is complete to secure the steering wheel harness.

To install, reverse the removal procedure.
