Pinpoint Test Dr: Camshaft Position (CMP) Sensor: Introduction

This pinpoint test is intended to diagnose the following:

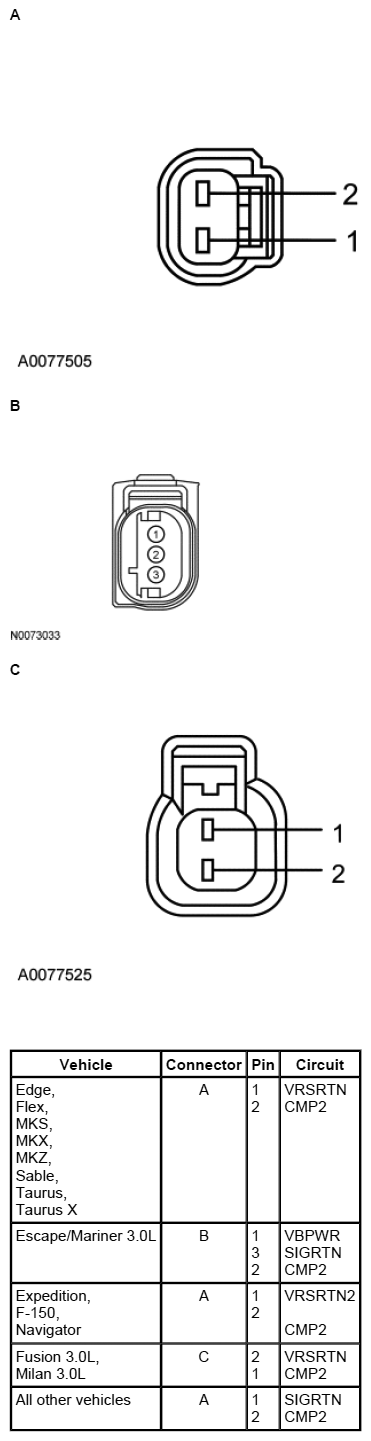

Fig 1: Camshaft Position (CMP) Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

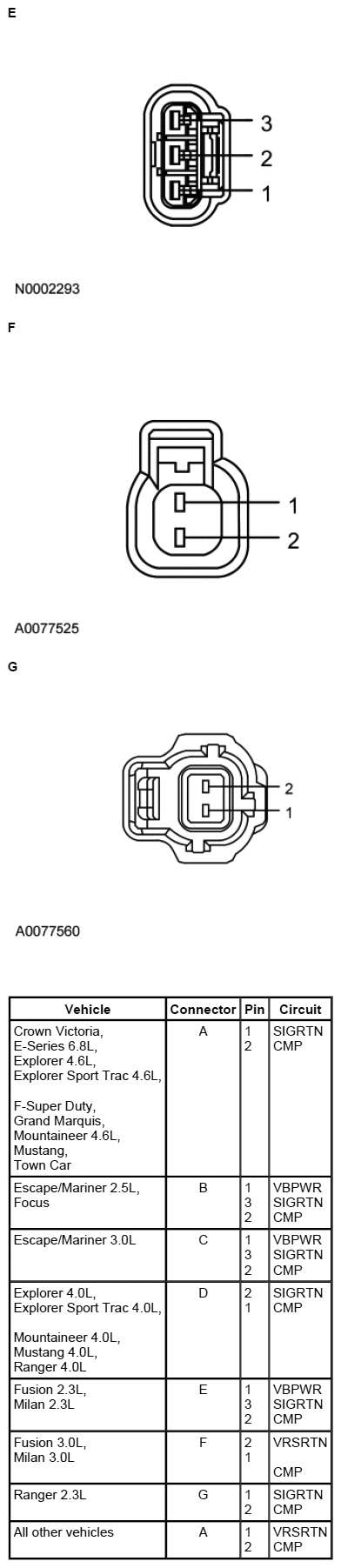

Fig 2: Camshaft Position (CMP) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

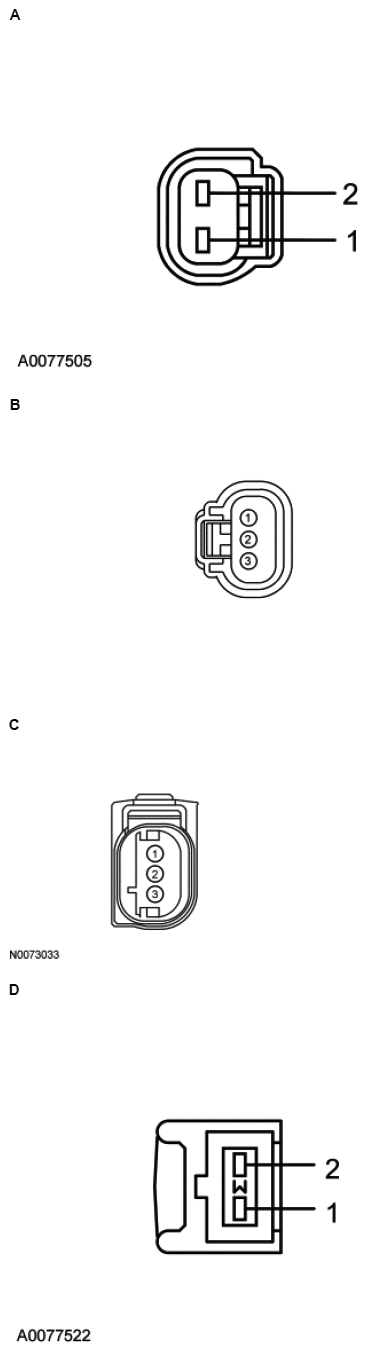

Fig 3: Camshaft Position 2 (CMP2) Sensor Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, E-Series 5.4L, F-150 2V 4.6L	190-Pin	E41 E27	VRSRTN CMP
Edge,Flex, MKS, MKX, Sable, Taurus, Taurus X	190-Pin	E44 E42 E45	CMP2 VRSRTN CMP
Escape/Mariner 3.0L	190-Pin	E12 E49 E11	CMP2 SIGRTN CMP
Escape/Mariner 2.5L	190-Pin	E49 E11	SIGRTN CMP
Expedition, F-150 3V 4.6L, F-150 5.4L, Navigator	190-Pin	E43 E28 E41 E27	VRSRTN2 CMP2 VRSRTN CMP
Explorer 4.6L, Explorer Sport Trac 4.6L, F-Super Duty 5.4L, Mountaineer 4.6L, Mustang 4.6L	170 Pin	E44 E58 E45	CMP2 SIGRTN CMP
Focus	190-Pin	E64 E8	SIGRTN CMP
Fusion 3.0L, Milan 3.0L, MKZ	140 Pin	E44 E33 E45	CMP2 VRSRTN CMP
Fusion 2.3L, Milan 2.3L	140 Pin	E58 E45	SIGRTN CMP
All other vehicles	170 Pin	E58 E45	SIGRTN CMP
