Air Conditioning Pressure (ACP) Transducer Sensor

The ACP transducer sensor is located in the high pressure (discharge) side of the A/C system. The ACP transducer sensor provides a voltage signal to the PCM that is proportional to the A/C pressure. The PCM uses this information for A/C clutch control, fan control and idle speed control.

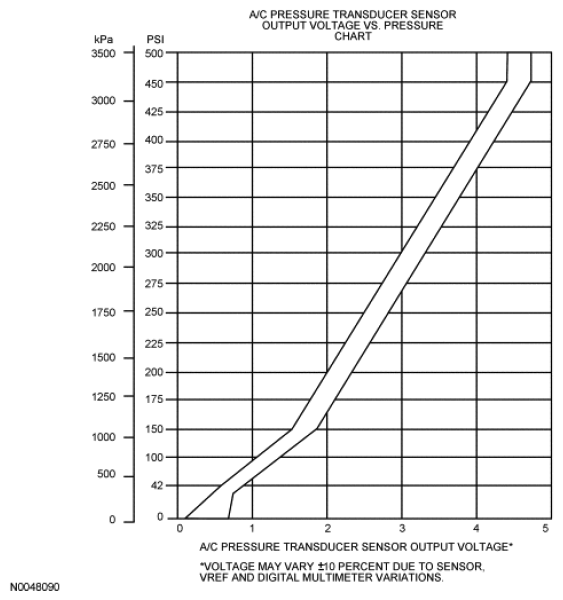

Fig 1: A/C Pressure Transducer Sensor Voltage Output Pressure Chart

Courtesy of FORD MOTOR CO.

Fig 2: Typical ACP Transducer Sensor

Courtesy of FORD MOTOR CO.
