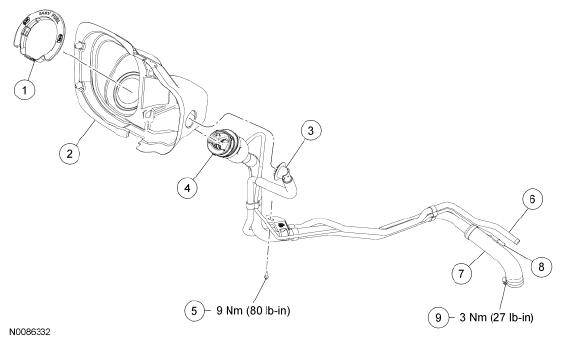

Fuel Tank Filler Pipe Assembly
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9K072A | Fuel tank filler pipe information bezel |
| 2 | 7828646 | Fuel fill door cup |
| 3 | - | Fuel tank filler pipe fresh air hose fitting (part of 9034) |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | W505254 | Fuel tank filler pipe bracket bolt |
| 6 | - | Fuel tank filler pipe fresh air hose (part of 9034) |
| 7 | - | Fuel tank filler pipe hose (part of 9034) |
| 8 | - | Fuel tank filler pipe recirculation tube (part of 9034) |
| 9 | W525936 | Fuel tank filler pipe hose clamp |
